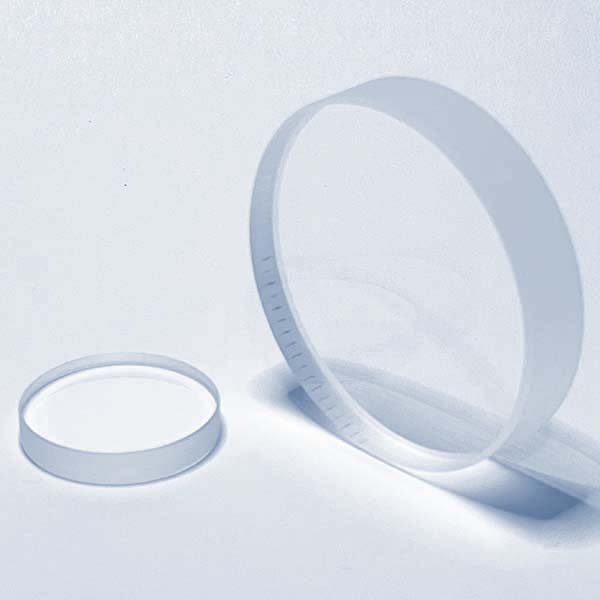

Fiber Laser Lens: 38.1mm x 6.38mm, 210mm Focal Length
$350.00
$350.00
Shipping calculated at checkout.
Fiber Laser Lens: 38.1mm Diameter x 6.38mm Thick, 210mm Focal Length
(1.5 inch Diameter x 0.25 inch Thick, 8.27 inch Focal Length)
Used by Salvagnini, Precitec, and more.
Salvagnini # 3163010030 , 3163010033
Reference # SA384-0026
- 99.98% Transmittance
- Broadband AR/AR Coating @ .9um-1,1um
- Max Power: 20kw
- High Purity Fused Silica
- Plano-Convex
- Diameter Tolerance: ± 0.13mm
- Thickness Tolerance: ± 0.25mm
- Focal Length Tolerance: ± 2%
- Edge Thickness Variation (ETV): ≤ 3 arc min
- Transmittance: 99.98%
- Aspheric Accuracy: ≥ 1 μm P-V
- Surface Quality: 40-20
- AR Coating: .9 - 1.1um
- Laser damage: 150J/cm2
